Optical Time Domain Reflectometer SU-OTDR22F

SUWOLF OTDR22F is a 4in1 multi-function Optical Time Domain Reflectometer (OTDR), it include four fuction:OTDR-1310/1550nm&22/20dB(60km(38mi) Test Distance), Visual Fault Locator (VFL)-650nm&10km(6.3mi),Optical Fiber Power Meter(OPM)-800～1650nm&-50～+26 dBm and Optical Light Source(OLS)-1310/1550nm,and it is the most cost-effective OTDR.

SUWOLF OTDR22F-T1 is a fully featured, entry-level, dedicated OTDR that is handy, lightweight and rugged enough for any outside plant environment,With a 4-inch, outdoor-enhanced touchscreen,it delivers an unprecedented user experience.

  • 4 inch IPS Outdoor Touch Screen;Power Supply: 8.4V Li-ion Battery 4400mAH
  • Lightweight, portable, cost-effective
  • One Key Operation, Legible Test Data
  • Integrated with Visual Fault Locator system, it is easily to detect fault location of dead Zone
  • Use the rubber Key, good dustproof, waterproof, quakeproof ability, suitable for field maintenance work
  • Use big capacity battery, long working time, suitable for long time field working
  • Suitable for engineer construction and maintenance fault location of FTTx and access network
  • Dead Zone of Reflection:2m;Dead Zone of attenuation Event:12m;Storage of records: 200 groups

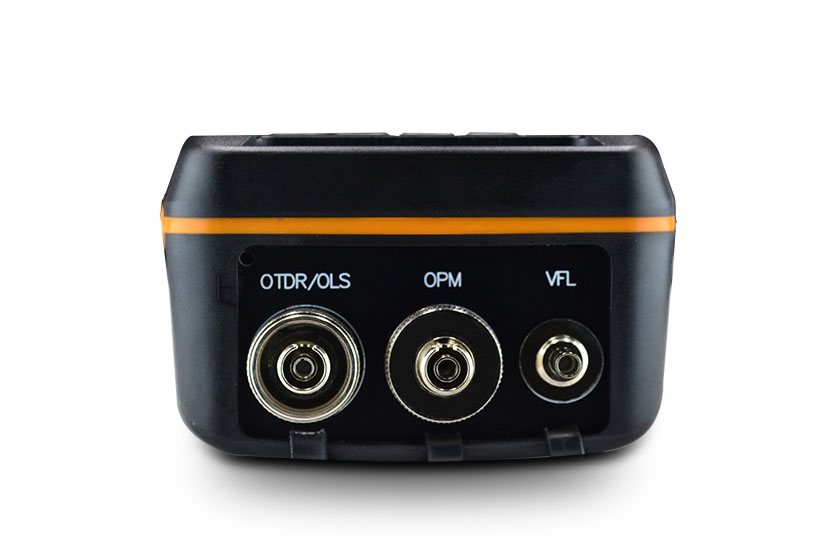

Multifunctional Tester

4in1 OTDR—include OTDR-1310/1550nm&22/20dB(60km(38mi) Test Distance), Visual Fault Locator (VFL)-650nm&10km(6.3mi),Optical Fiber Power Meter(OPM)-800～1650nm&-50～+26 dBm and Optical Light

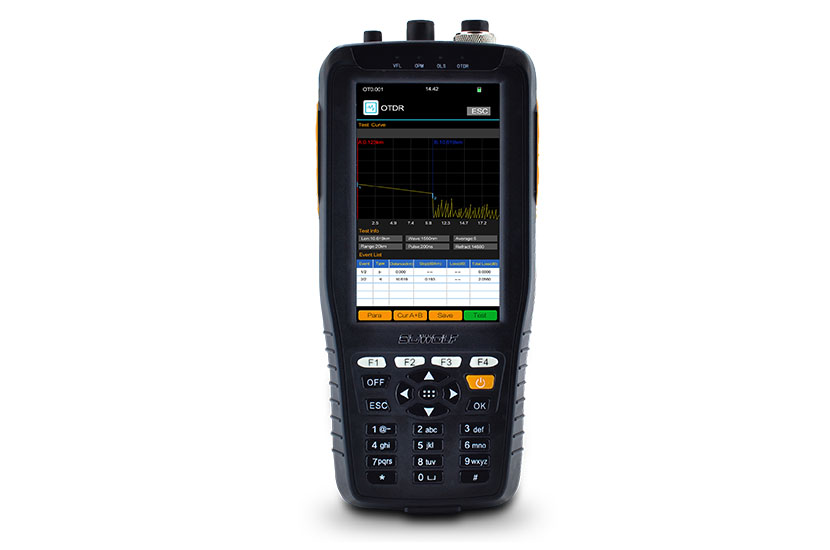

4" IPS Outdoor Touchscreen

SPEEDWOLF OTDR22F-T1 is equipped With a 4-inch(800*480px), outdoor-enhanced IPS touchscreen,and it delivers an unprecedented user experience.

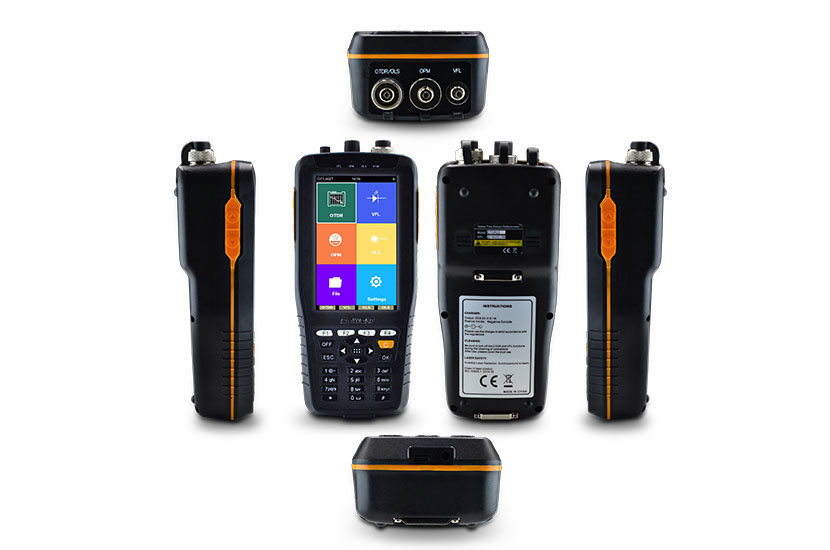

Practical, Compact Design and More Durable

SUWOLF OTDR22F-T1 Smart handy OTDR is very Small size and light weight--Only 180x80x50mm/7.1x3.1x2.0inch and 0.45KG/1LB, Portable mini design,it suitable for engineer construction and maintenance fault location of FTTx and access network.
