Fusion Splicer SU-FS20E

SU-FS20E series optical fiber fusion splicer is designed with high-speed image processing technology and special precision-positioning technology. It will automatically finish the whole fiber fusion process in 9 seconds by fast mode, and splice loss is lower than 0.02dB for single mode fiber.3.5-inch LCD, dual CMOS monitors, X and Y axis separately display or simultaneously display, thus different fusion stages can be showed clearly. It is compatible with ITU-T SM/MM/DS/NZDS/ED fiber, and is equipped with 4-in-1 holders and SOC adapter.

SU-FS20E has small volume, light weight, AC/DC power supply and 150+ splicing and heating circles, so it is particularly suited to telecommunications, radio and television, railway, electric power, military, research institutes for optical fiber communication construction and maintenance. SP-FS20E is perfect for FTTH installation and maintenance.

  • Four motors, special precision-positioning technology
  • Splice Loss: SMF/BIF: ≤0.02dB(typ.); MMF: ≤0.01dB(typ.); DSF/NZDSF/EDF: ≤0.04dB(typ.)
  • High precision 4-in-1 holder (250µm/900µm/patch cord/FTTx indoor fiber etc), SOC holder
  • Unique battery and the host separation design, convenient maintenance and replacement of the battery
  • Double V-groove design
  • High strength portable straps design is convenient for hanging and operating
  • Ready-package battery with electric quantity indicator, convenient carrying and change
  • ≤9s splicing time, ≤36s heating time (adjustable)
  • Auto splice, auto arc optimization, auto heating

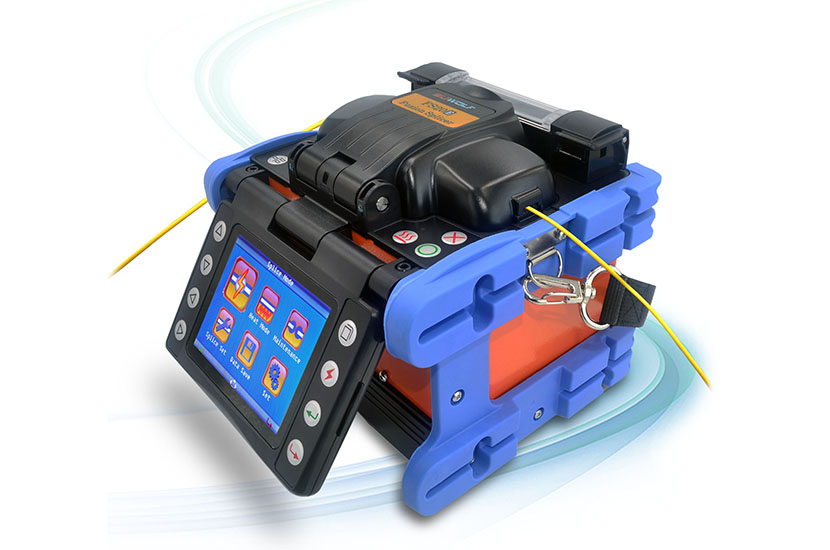

Portable Design

Very Small size and light weight--only 4.9(L)x4.9(W)x5.3(H)inch and Only 1.2kg/2.6lb(without battery) or 1.5kg/3.3lb (with battery); High strength portable straps design is convenient for hanging and operating. Wind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environment.

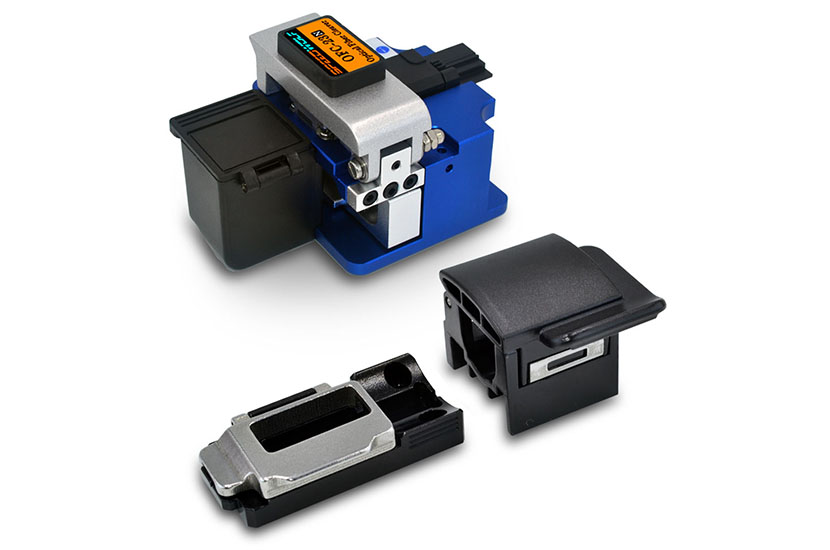

Fiber Cleaver and SOC Holder

Optical Fiber Cleaver is imported from Korea developed a technology for Splice can meet the heat-fusible fiber a multi-purpose cutters;and it using high-strength blade surface 16 points, longer life, comes with triple fixtures can be incision line, pigtails and bare fiber. Meanwhile,Support SOC splicing.

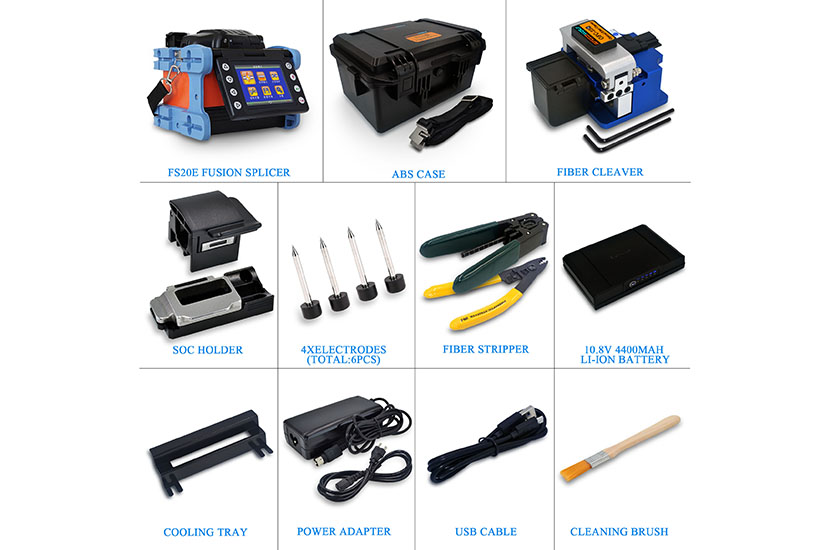

Plentiful Accessories

1*Fusion Splicer,1*Fiber Cleaver,1*Fiber Stripper,1*Miller Stripper,1*100-240V AC adapter,1*10.8V 44000mah Lithium Battery,4*Spare Electrodes(Total 6pcs),1*Cooling Tray,1*User Manual,1*SOC Holder,1*4in1 Holder,1*Plastic Carrying Case,1 Cleaning Brush.
